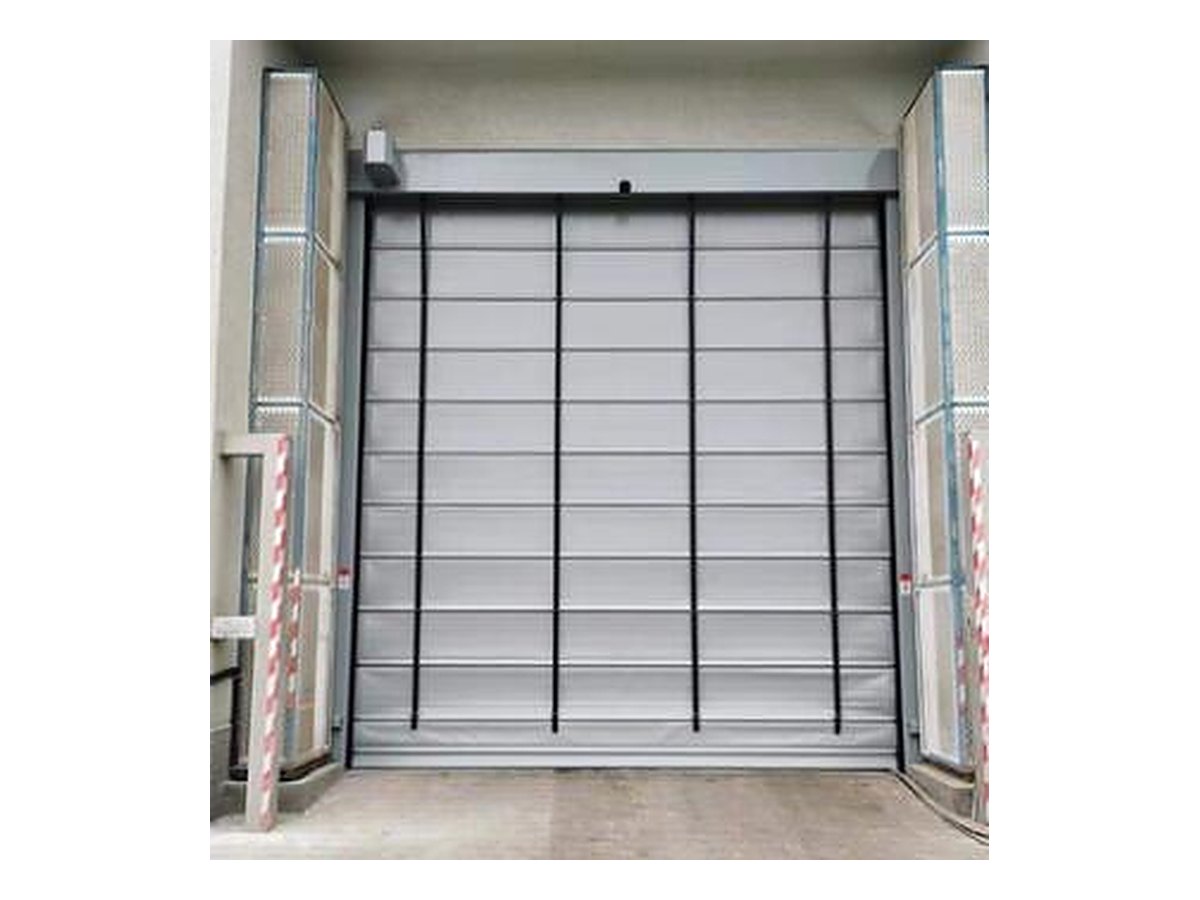

Stacking Rapid Door

The curtain stacks in sections as it rises, keeping the headroom requirement small while clearing a large opening. Variable-speed operator and safety light curtain, with better wind resistance than a standard high-speed door.

Key features

Sectional stackingLarge openingsWind-resistant

Common specifications

Opening size
W ≤ 10000 × H ≤ 8000 mm
Speed
0.5–1.2 m/s
Operator
Inverter motor + encoder limits
Wind resistance
Integrated bars, wind force 8–10
Safety
Photocell + bottom safety edge

The above are common specifications; final details are confirmed per project. Drawings accepted.

Applications

  • Large workshop doors
  • Dock areas
  • High-wind sites
