EPDM Composite Gasket

EPDM 复合密封胶条

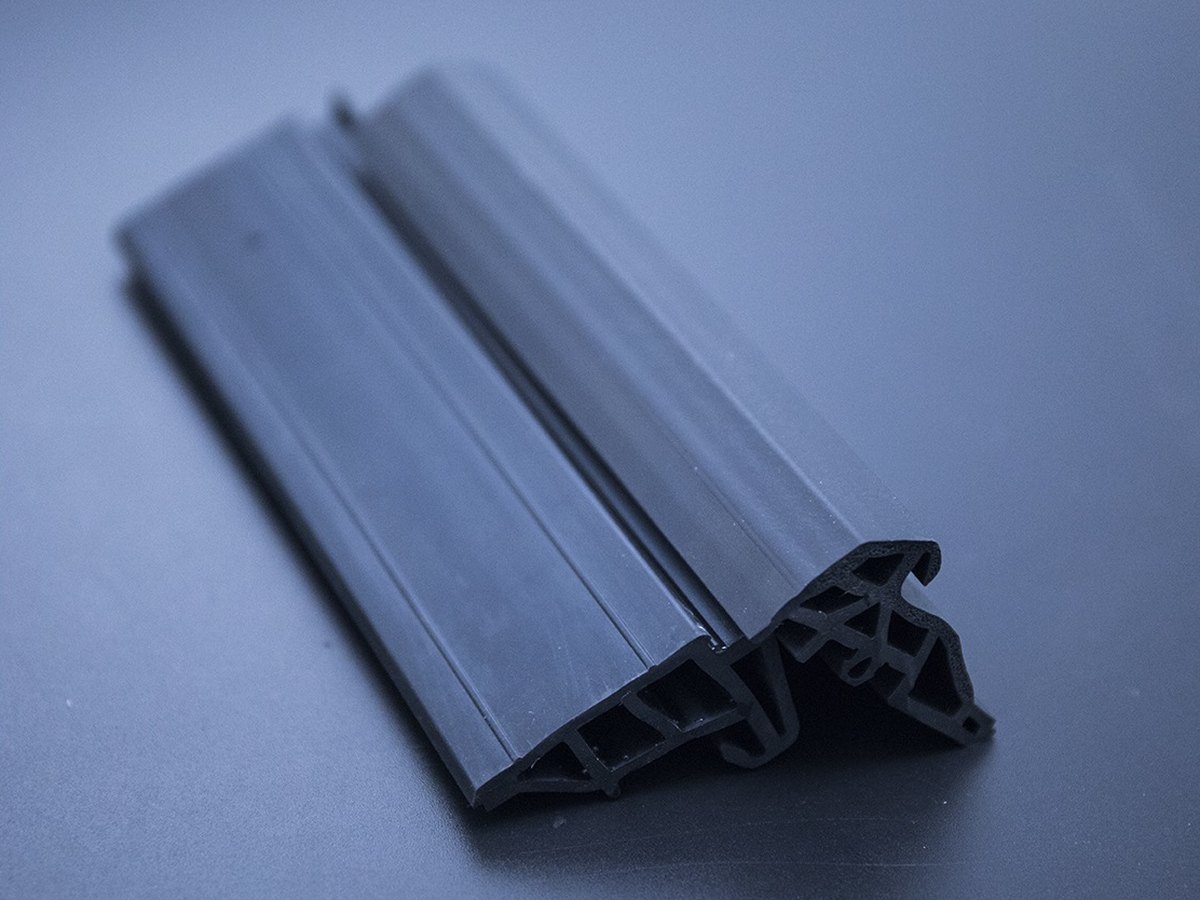

EPDM Composite Gasket

Two EPDM hardnesses co-extruded in one pass: the hard section clips into the groove and stays put, the soft section forms the sealing lip against the sash. Unlike a foam composite both sections are solid, so compression set is lower — better for fixed joints under permanent load.

Key features

Dual durometerLow setFixed joints

Common specifications

Construction
Hard EPDM base + soft EPDM lip, co-extruded
Behaviour
Low compression set under permanent load
Service temperature
−40 to 120 °C
Colour
Black, grey or custom

The above are common specifications; final details are confirmed per project. Drawings accepted.

Applications

  • Frame-to-sash overlap
  • Fixed joints
  • Curtain-wall profile joints

Need a quotation for this series?

Tell us your specification, quantity and application and we will propose a configuration and quote.

Enquire now
  • Sample approval before mass production
  • Material and finish made to drawing
  • Technical support in Chinese and English
